本系列電動機集國內外產品之優點，調速范圍寬、振動小、噪音低。電機采用鼠籠型結構、運行可靠，維擴方便。裝有獨立的冷卻風機，保證在不同轉速下均有良好的冷卻效果。該系列電動機在5（3）-50HZ運行時輸出恒轉矩，在50~100HZ運行時輸出恒功率。
YXVP系列電動機的安裝尺寸和功率等級均符合IEC標準，對應關系與Y系列電動機一致，互轉性、通用性強。電動機采用F級絕緣，外殼防護IP44或IP54，冷卻方式IC416，連續工作制（SI)。
Combining the advanced technology home and abroad,YXVP series motors posses the advantages of wide range of wide range of adjustable speed,little vibration and low noise.The squirrel cage type structure makes it reliable operation and easy maintenance,The independent cooling fan can guarantee the good cooling effect under different speed Running at 5(3)~to50Hz,this series can run smoothly under constant torque,while at 50~100Hz it delivers constant output power.
Its installations dimensions and power rank conform to IEC standard.The corresponding relation is in identical with Y series motor,which is characterized by good interchangeability and versatility,This series motor adopts F grade insulation,IP44 or IP54 degree of covering protection,IC416 cooling method, continuous duty(S1). For 55kw power and below, the motor are connected in Y,while the above ones are connected in△.

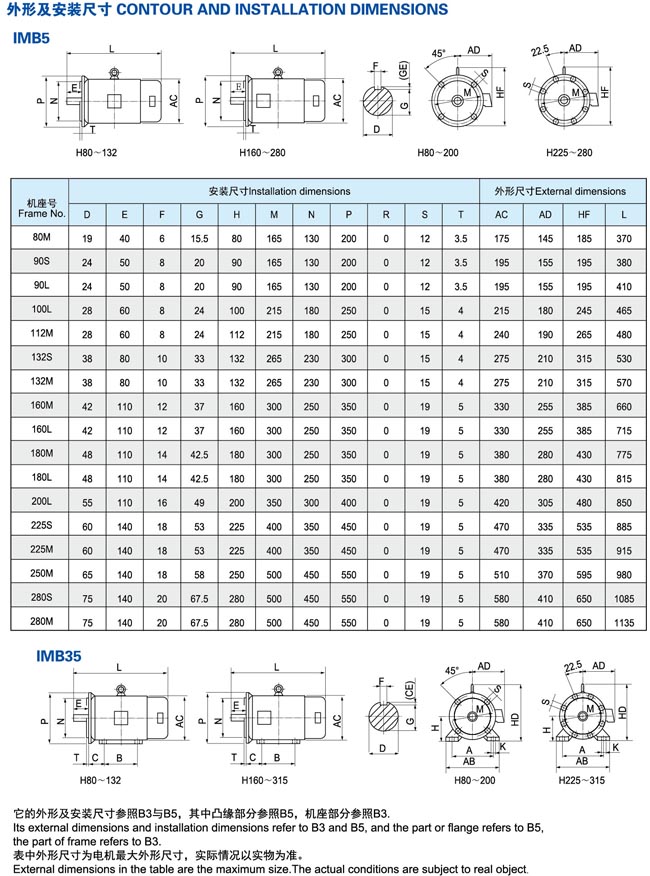

它的外形及安裝尺寸參照B3與B5，其中凸緣部分參照B5，機座部分參照B3.
Its external dimensions and installation dimensions refer to B3 and B5, and the part or flange refers to B5,
the part of frame refers to B3.
表中外形尺寸為電機最大外形尺寸，實際情況以實物為準。
External dimensions in the table are the maximum size.The actual conditions are subject to real object.
