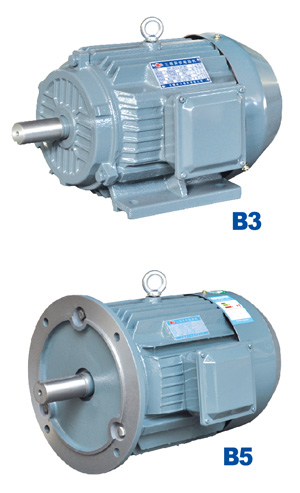

YX3系列電機系列全封閉、外扇冷式、鼠籠型機構。該系列電機是國內第一個完整的全系列采用冷軋硅鋼片為導磁材料的低壓籠型三相異步電動機基本系列。具體設計新穎、造型美觀、噪音低、轉矩高、啟動性能好、結構緊湊、使用維護方便等特點。其效率完全符合GB18613-2012《中小型三相異步電動機能效限定值及節能評價值》的規定，采用F級絕緣，且全系列溫升按B級考核，從而大大提高了安全可靠性。電機的安裝尺寸符合IEC標準規定，電機的外殼防護等級為IP55。
YX3系列電動機可廣泛應用于機床、風機、水泵、壓縮機和交通運輸、農業食品加工等各類機械傳動設備。
YX3 series are totally enclosed fan-cooled squirrel cage structure motor.this series motor is the first product which adopts cold-rolled silicon sheet in domestic market,with the feature of novel design、beautiful modeling、lownosie、high torque、compact structure、excellent starting performance、easy maintenance and so on.The efficiency conform to regulation of 《efficiency limits and energy-saving evaluation》.the motor’s safety and reliability are greatly enhanced because of F class insulation and ip55 protection class on outer cage. Mounting dimensions are conformed to IEC standard.
YX3 series motors can be widely used for driving equipments of various machineries,such as machine tools、blower、pumps、compressors, transport、agricultural and food processing.
產品使用條件 WORKING CONDITION
額定功能范圍：0.12~315kw
基本極數：2、4、6、8、10級
功率：50HZ
電壓：380V
冷卻方式：IC411(外循環表面冷卻）
接法：3KW以下為Y接，4KW以上為Δ接法
定額：連續S1
環境溫度隨季節而變化，但最高不超過40℃,最低不
低于-15℃,海拔不超過1000米
The range of rates power :0.12kw-315KW
Basic pole:2、4、6、8、10poles
Frequency:50HZ
Voltage:380V
Cooling method:IC411
Connection method：“Y”connection for 4KW connection method,
“△”connection for 4KW and above Working duty:continuous duty S1
The environment temperature is ranged form-15℃ to 40℃,the altitude is no more than 1000m.
